In a valve, the fit is the function. Enex machines valve bodies, hydraulic manifolds, spools, sleeves and tight-tolerance internals for valve OEMs and fluid-power rebuilders — turning and milling to ±0.01mm, and Wire EDM below ±0.005mm where the geometry demands it. Quotes back in 24-48 hours.
Fluid-power components live or die on internal geometry — a spool that sticks, a seat that won't seal, a bore that's a few microns out. Most of our valve and hydraulic work falls into one of these four buckets.
Valve bodies & seats
Turned and milled bodies with seat geometry finished to seal. 316 / duplex stainless for corrosion-prone service, 4140 for high-pressure duty.
Hydraulic manifolds & blocks
Cross-drilled manifolds and valve blocks in aluminium or steel. Intersecting bores deburred, ports threaded, pressure-faces flat to spec.
Spools & sleeves
Wire EDM and ground spools and sleeves held below ±0.005mm. The sliding fit that governs how cleanly the valve actuates.
Internals & seal lands
Pistons, glands, cartridges and seal lands turned to H7 fit. Tight-tolerance internals for cylinders, actuators and rebuild kits.
// 02 — Tolerance & finish
The fit is the function
Routine turning and milling to ±0.01mm. For spools, sleeves and seat geometry — where a few microns decide whether the valve leaks, sticks or actuates clean — we move the work onto Wire EDM and hold below ±0.005mm.
Bore and seal lands finished to H7 where the assembly calls for it. EN 10204 type 3.1 material certs on request, with grades and heat numbers traceable for the life of the part.
Turning / milling
±0.01mm routine
Wire EDM
Below ±0.005mm — Seibu + Sodick
Bore fits
H7 seal lands & bores
Materials
316 · duplex · 4140 · aluminium · bronze
Mill cert
EN 10204 type 3.1 on request
// 03 — Recent jobs
Off the shop floor

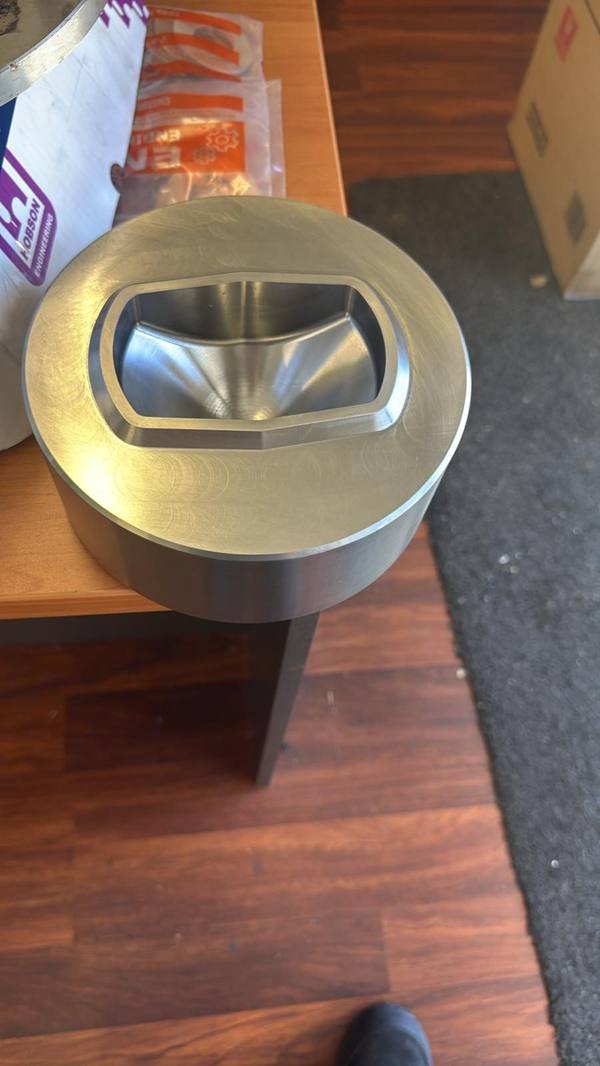

Valve body
Body machined with seat geometry finished to seal, ports threaded and pressure-face flat. Inspected and certified before dispatch.

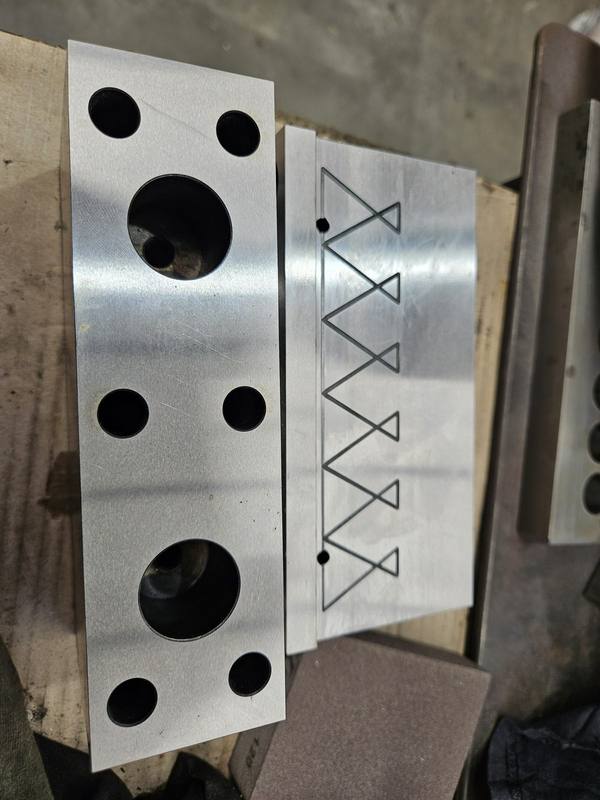

Hydraulic manifold
Cross-drilled manifold with intersecting bores deburred and ports threaded. Pressure-faces milled flat for a clean seal.

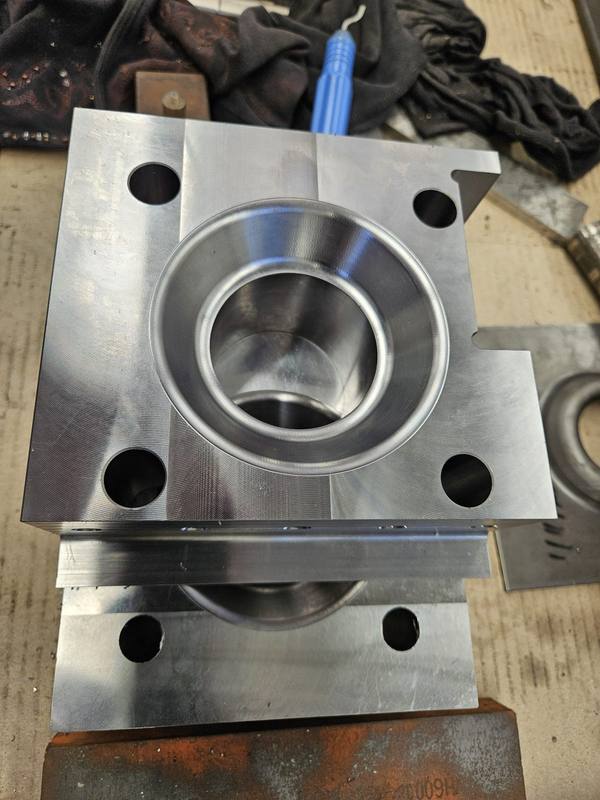

Hydraulic valve block
Multi-port valve block machined from billet. Bores held to fit, ports and counterbores to drawing, ready for cartridge assembly.
// 04 — How we quote
Drawing or worn part. We do the rest.
Send what you've got
Drawings preferred. Worn spools, sleeves or bodies welcome — we'll measure and draw the replacement.
Quote in 24-48 hours
Engineer reviews same day. Pricing, lead time, material spec and tolerance plan built in.
Made & shipped
Dimensional report and mill certs on request. Direct freight Perth metro and statewide.
// 05 — FAQ
Valve & hydraulics buyers ask
What tolerances can you hold on valve internals?
Routine turning and milling to ±0.01mm. On Wire EDM we hold below ±0.005mm — for spools, sleeves and seat geometry where the fit governs how the valve performs. We finish bore and seal lands to H7 where the assembly calls for it.
Do you machine hydraulic manifolds and valve blocks?
Yes. Cross-drilled hydraulic blocks, manifolds and valve bodies in aluminium, 4140, 316 and duplex stainless. Intersecting bores deburred, ports threaded and pressure-faces finished to spec.
Can you reverse-engineer an obsolete valve component?
Yes. Send the worn spool, sleeve or body and we'll measure it, model it in CAD and machine a direct-fit replacement — including internals the original manufacturer no longer supplies. Typical lead time 5-10 working days from sample arrival.
What materials do you work for fluid-power parts?
316 and duplex stainless for corrosion duty, 4140 for high-strength internals, aluminium for manifolds, bronze for bushings and bearing surfaces. Material grades and heat numbers traceable, with EN 10204 3.1 certs on request.
